Specification
| Key Features | ||
| Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 450 Mbps WiFi 4 (802.11n) (256QAM) : up to 600 Mbps WiFi 5 (802.11ac) : up to 2600 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps |
|
| Antenna | Internal antenna x 5 | |
| Button | WPS Button, Reset Button, Power Switch | |
| Frequency | 2.4 GHz / 5 GHz | |
| Wireless | MU-MIMO UTF-8 SSID WiFi MAC Address Filter Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
|
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
|
| Encryption | AiProtection WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support WPS Let’s Encrypt DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
|

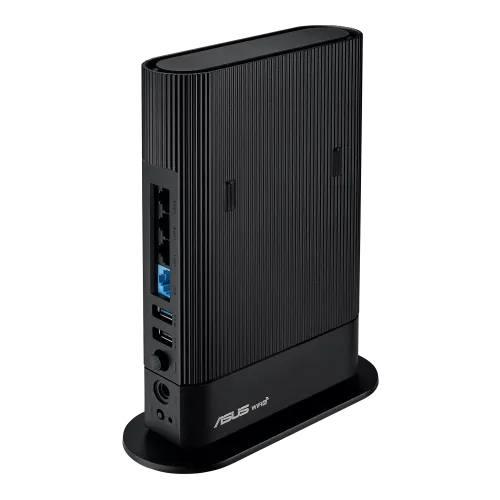

| Ports | RJ45 for Gigabits BaseT for WAN x 1 RJ45 for Gigabits BaseT for LAN x 3 USB 3.2 Gen 1 x 1 USB 2.0 x 1 |
|
| Others | Operating Mode: Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge AiProtection: Router Security Assessment Malicious Site Blocking Two-Way IPS Infected Device Prevention and Blocking VPN: Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Traffic Control Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter — Maximum Bandwidth Limiter Rule : 32 Traditional QoS — Maximum Traditional QoS Rule : 32 Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History WAN Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN 3G / 4G LTE dongle Port forwarding • Maximum Port Forwarding Rule : 64 Port triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay LAN DHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) |
|
| Power Source | ||
| Power Mode | AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 2.5 A current |
|
| Physical Dimension | ||
| Dimension | 131 x 37.5 x 200 mm (WxDxH) | |
| Weight | 476 g | |
| Color | Black | |
| Manufacturer warranty | ||
| Warranty | 2 Years | |
