Specification
| Main Feature | ||
| Network Standard | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
|
| Advanced Functions | Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode Isolation Mode Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control |
|
| Transmission Method | Store-And-Forward | |
| Data Transmission Rate | 10/ 100/ 1000 Mbps | |
| MAC Address Table | 8k | |
| Environment | Operating Temperature: 0–50 °C (32–122 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
|
| Hardware Features | ||

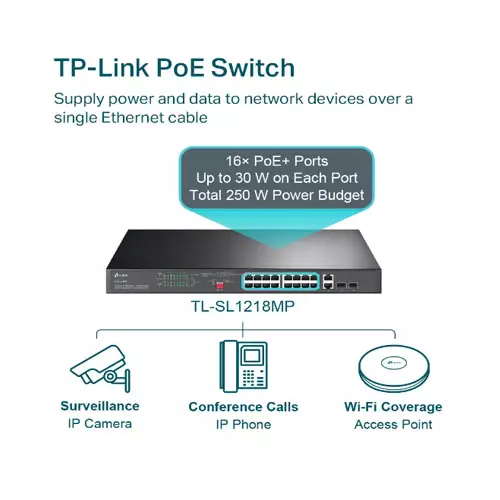

| Interface | 16 PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 2× Combo Gigabit SFP Slots |
|
| LED | Yes | |
| Power Supply | 100–240V AC, 50/60 Hz | |
| Dimensions (L x W x H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
|
| Manufacture Warranty | ||
| Warranty | 02 Year Warranty | |
