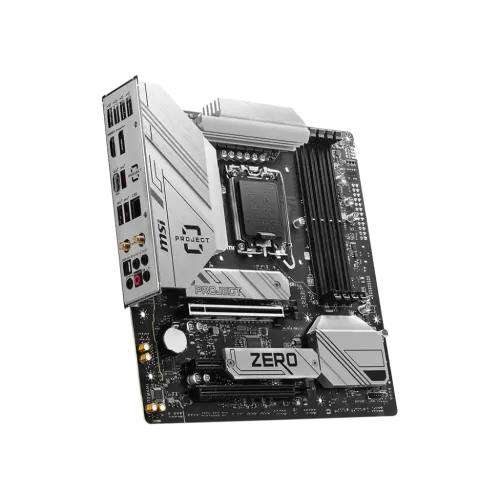

MSI B760M PROJECT ZERO m-ATX Motherboard

MSI B760M PROJECT ZERO m-ATX Motherboard - Image 2

MSI B760M PROJECT ZERO m-ATX Motherboard - Image 3

MSI B760M PROJECT ZERO m-ATX Motherboard - Image 4

MSI B760M PROJECT ZERO m-ATX Motherboard

Original price was: ৳ 24,800.Current price is: ৳ 23,800.

Key Features

Model: B760M PROJECT ZERO
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 2.5Gbps LAN, Intel Wi-Fi 6E

Chat Through WhatsApp

Category: MSI (Intel)

Description
Reviews (0)

Specification

Basic Information
Supported CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High Performance Audio Supports S/PDIF output
Expansion Slots
PCI	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket	1x M.2
Memory
Type	DDR5
Slots	4x DIMM
Supported Memory	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Maximum Memory	192GB
Graphics
Graphics	Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz*
Connector & Ports
HDMI	1x HDMI 1.4
Display Port (s)	1x DisplayPort
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek 2.5Gbps LAN
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports	Internal I/O Ports: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS: USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2×2 20Gbps Type-C Optical S/PDIF OUT
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others
Special Features	4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years
