Specification
| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|
| Chipset | Intel B660 Chipset | |
| BIOS | 128Mb Flash ROM | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback ” * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM slots | |
| Supported Memory | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 2 x DisplayPort** 1 x D-Sub port 1 x HDMI port ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Display Port (s) | 2 x DisplayPort | |
| D-Sub (s) | 1 x D-Sub | |

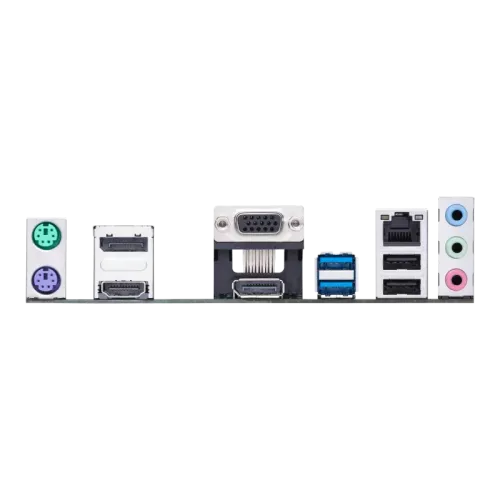

| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel 1Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. |
|
| Supported Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. |
|
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related Storage related USB Miscellaneous |
|
| Others | ||
| Special Features | ASUS EZ DIY – Box Headers Bespoke Motherboard Design & Business Focused Features – Q-LED Core – ASUS Self Recovering BIOS – ASUS Event Log – ASUS Commercial BIOS kit – Anti-Moisture – 24/7 Reliability – Overcurrent Protection TPM IC onboard |
|
| Bundled Software | ASUS Exclusive Software IT Management software supported – ASUS Control Center Express(ACCE) |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
